High Brightness P5 P6 P8 P10 Waterproof LED Screen Billboard Structure Stable Performance Outdoor Advertising Display

Large Image : High Brightness P5 P6 P8 P10 Waterproof LED Screen Billboard Structure Stable Performance Outdoor Advertising Display

Product Details:

Place of Origin:	Guangdong, China

Contact Now

Detailed Product Description

Warranty:	5 Years	Type:	LED
Application:	Outdoor	Pixel Pitch:	8 Mm
Module Size:	480*320mm	Lamp Type:	SMD2727
Usage:	Outdoor HD	Cabinet Material:	Alumimum
Cabinet Weight:	28kg	Refresh Rate:	3840Hz
Control System:	Novastar System	Maintenance Mode:	Front Or Rear Maintenance
Gray Scale:	14bit

Discover Your Right Application , Make Your Business Possible !

Common warranty in LED field is 2 years, ours is 3 years Longer warranty periods, better after-sale services, worry-free user experience

Project Case

Rental LED displays have been exported to many countries and rigions in the World, and we are highly praised by our customers.

Products Description

Part Number	P5.7	P6.66	P8	P10
Pixel Pitch	5.7mm	6.66mm	8mm	10mm
LED Configuration	SMD2727
Pixel Density	30625dot/m2	22500dot/m2	15625dot/m2	10000dot/m2

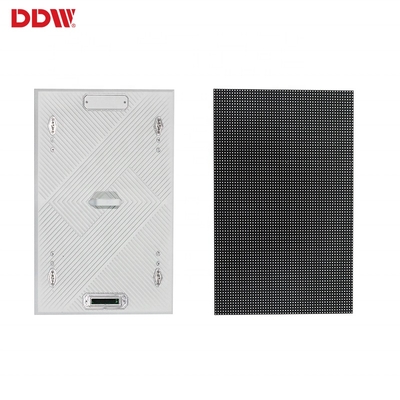

Module size	480*320mm
Module Resolution	84*56 dot	72*48 dot	60*40 dot	48*32dot
Cabinet Size	96096077mm
Cabinet Resolution	168*168dot	144*144dot	120*120dot	96*96dot
Cabinet Weight	28kg
IP Rating ( front/back)	IP65
Brightness Intensity
Viewing Angle (H/V)	140°/140°
View Distance	＞5m
Gray Scale	14bit
Display Scale	16.7M
Brightness Adjustment	0-100 levels adjustable
Max.Power Consumption	650W/㎡
Ave.Power Consumption	200W/㎡
Drive Mode	1/7S	1/6S	1/4S	1/2S
Refresh Frequency	≥3840HZ
Gamma Correction	-5.0~+5.0
Environmental	OUTDOOR
Control Mode	Synchronous display with control PC by DVI
Support Input	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power	AC100~240 50/60HZ
Operating Temperature	-20℃~+50℃
Operating Humidity	10~95% RH
Operating Life	100,000hours
