High Performance Outdoor Naked Eye 3D LED Display P4 P5 P6 P8 P10 Full Color 3D Effect LED Screen Billboard for Advertising

Name: High Performance Outdoor Naked Eye 3D LED Display P4 P5 P6 P8 P10 Full Color 3D Effect LED Screen Billboard for Advertising
Brand: Shenzhen DDW Technology Co., Ltd.
SKU: DDW-FA
Availability: InStock

Large Image : High Performance Outdoor Naked Eye 3D LED Display P4 P5 P6 P8 P10 Full Color 3D Effect LED Screen Billboard for Advertising

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DDW
Model Number:	DDW-FA

Contact Now

Detailed Product Description

Warranty:	3 Years	Resolution:	3840×2160 (4K)
Waterproof:	Ip65	Viewing Angle:	160°

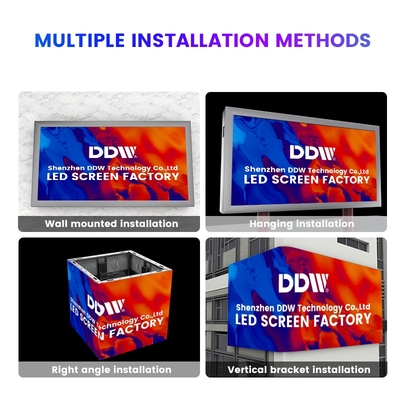

Mounting Options:	Wall Mount, Floor Stand, Custom Mount	Content Management System:	Cloud-Based CMS, Mobile CMS, Multi-Language Support, Content Scheduling, Analytics Integration, Multi-User Permissions
Sunlight Readable:	Yes	Remote Device Management:	Firmware Over-The-Air（FOTA）, Remote Content Management, Real-Time Status Monitoring, API Integration
Type:	LED	Application:	Outdoor
Use:	Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Exhibition Hall, Airport, Subway, Restaurant & Hotel Supplies	Media Available:	Datasheet, Photo, EDA/CAD Models
Color:	16bit	Pixel Density:	10000dot/m²
Pixels:	P4.44, P5.7, P6.66, P8, P10	Brightness:	6500cd, 10000cd, 11000cd
Pixel Pitch:	10 Mm	Module Size:	480*320mm

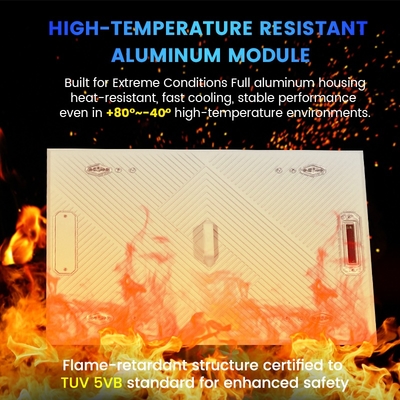

Lamp Type:	SMD2727	Cabinet Material:	Alumimum
Cabinet Weight:	28kg	Refresh Rate:	3840Hz-4300Hz

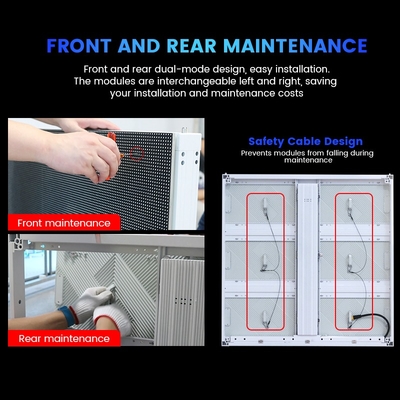

Control System:	Novastar System	Maintenance Mode:	Front Or Rear Maintenance
Gray Scale:	16bit	Panel Size:	960640,1440640,960960,1440960

Products Description

Specifications

PixelPitch	4.44mm	5.7mm	6.66mm	8mm	10mm
LEDConfiguration	SMD1921	SMD2727	SMD2727	SMD2727	SMD2727
PixelDensity	50630dot/㎡	30625dot/㎡	22500dot/㎡	15625dot/㎡	10000dot/㎡
Modulesize	480*320mm	480*320mm	480*320mm	480*320mm	480*320mm
ModuleResolution	108*72dot	84*56dot	72*48dot	60*40dot	48*32dot
CabinetSize	96096077mm	96096077mm	96096077mm	96096077mm	96096077mm
CabinetResolution	216*216dot	168*168dot	144*144dot	120*120dot	96*96dot
CabinetWeight	28kg	28kg	28kg	28kg	28kg
IPRating(front/back)	IP65	IP65	IP65	IP65	IP65
BrightnessIntensity	≥6000CD/㎡	≥6500CD/m2	≥6000CD/m2	≥6500CD/m2	≥6500CD/m2
ViewingAngle(H/V)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
ViewDistance	＞5m	＞5m	＞5m	＞5m	＞5m
GrayScale	14bit	14bit	14bit	14bit	14bit
DisplayScale	16.7M	16.7M	16.7M	16.7M	16.7M
BrightnessAdjustment	0-100levelsadjustable

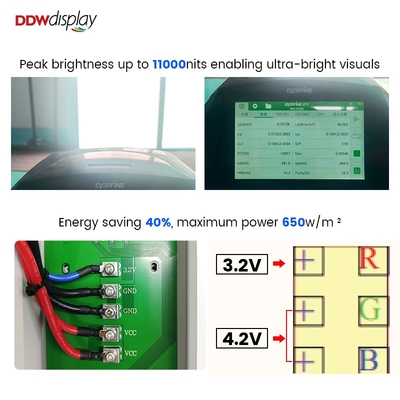

Max.PowerConsumption	650W/㎡	650W/㎡	650W/㎡	650W/㎡	650W/㎡
Ave.PowerConsumption	200W/㎡	200W/㎡	200W/㎡	200W/㎡	200W/㎡
DriveMode	1/9S	1/7S	1/6S	1/4S	1/2S
RefreshFrequency	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
GammaCorrection	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0
Environmental	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR
ControlMode	SynchronousdisplaywithcontrolPCbyDVI
SupportInput	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
OperationPower	AC100~24050/60HZ	AC100~24050/60HZ	AC100~24050/60HZ	AC100~24050/60HZ	AC100~24050/60HZ
OperatingTemperature	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃
OperatingHumidity	10~95%RH	10~95%RH	10~95%RH	10~95%RH	10~95%RH
OperatingLife	100,000hours	100,000hours	100,000hours	100,000hours	100,000hours

Company Profile

Q:Who Are We?

A: DDW DISPLAY has 12,000sqm high-tech automated workshop, 100 employees,25 research engineers,20 after-sale technicians,4000sqm productivity each month.

Q: How Can We Guarantee Quality?

A: Seven quality control steps ensure your ordered screens good: 1. Suppliers are long-term cooperated large famous company. 2. Material check by professional workers and machines. 3. Debug every modules. 4. 48-hour aging test for all modules before assembling. 5. Test every cabinet's function after assembling by engineers and machines. 6. 72-hour aging test for whole screen before shipment. 7. All details final inspection again before package.

Q: What Can You Buy From Us?

A: indoor outdoor rental LED screen, fixed LED screen, HD LED screen, flexible LED screen, transparency LED display, creative led screens and customization services.

Q: Why Should You Buy From US Not From Other Suppliers?

A: After the 12 years' development, Shenzhen DDW Technology Co.,Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.

Q: What Services Can We Provide?

A: 5-years quality warranty and life-long repairing service. If any components need to repair or replace, you can send it back to Shenzhen.
