Front Maintenance Outdoor Advertising Video Wall Screen P5 P6 P8 P10 Super Bright Led Billboard Display for Building Facade

Large Image : Front Maintenance Outdoor Advertising Video Wall Screen P5 P6 P8 P10 Super Bright Led Billboard Display for Building Facade

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DDW
Model Number:	DDW-FA

Contact Now

Detailed Product Description

Application:	Outdoor	Color:	Full Color
Supplier Type:	Original Manufacturer, ODM, OEM	Media Available:	Datasheet, Photo, EDA/CAD Models
Use:	Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Exhibition Hall, Airport, Subway, Restaurant & Hotel Supplies	Function:	SDK
Pixels:	8mm	Specification:	Video Wall
Brightness:	10000≥6500 Cd/m²	Pixel Density:	15625dots/m2
Contrast Ratio:	5000:1	Color Depth:	1R1G1B
Lifespan (hours):	100000 Hours	Ip Rating:	IP65
Resolution:	120*120dots/cabinet	View Angle（h/v）:	160/160
Pixel Pitch:	8 Mm	Module Size:	480*320mm
Lamp Type:	SMD2727	Usage:	Outdoor HD
Cabinet Material:	Alumimum	Cabinet Weight:	28kg
Refresh Rate:	3840Hz	Control System:	Novastar System
Maintenance Mode:	Front Or Rear Maintenance	Gray Scale:	14bit
Type:	LED	Panel Size:	960x960mm

Discover Your Right Application , Make Your Business Possible !

Common warranty in LED field is 2 years, ours is 3 years Longer warranty periods, better after-sale services, worry-free user experience

Project Case

Rental LED displays have been exported to many countries and rigions in the World, and we are highly praised by our customers.

Products Description

Part Number	P5.7	P6.66	P8	P10
Pixel Pitch	5.7mm	6.66mm	8mm	10mm
LED Configuration	SMD2727
Pixel Density	30625dot/m2	22500dot/m2	15625dot/m2	10000dot/m2

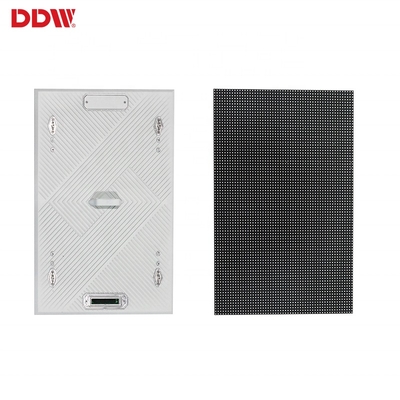

Module size	480*320mm
Module Resolution	84*56 dot	72*48 dot	60*40 dot	48*32dot
Cabinet Size	96096077mm
Cabinet Resolution	168*168dot	144*144dot	120*120dot	96*96dot
Cabinet Weight	28kg
IP Rating ( front/back)	IP65
Brightness Intensity
Viewing Angle (H/V)	140°/140°
View Distance	＞5m
Gray Scale	14bit
Display Scale	16.7M
Brightness Adjustment	0-100 levels adjustable
Max.Power Consumption	650W/㎡
Ave.Power Consumption	200W/㎡
Drive Mode	1/7S	1/6S	1/4S	1/2S
Refresh Frequency	≥3840HZ
Gamma Correction	-5.0~+5.0
Environmental	OUTDOOR
Control Mode	Synchronous display with control PC by DVI
Support Input	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power	AC100~240 50/60HZ
Operating Temperature	-20℃~+50℃
Operating Humidity	10~95% RH
Operating Life	100,000hours
