Factory Wholesale 50x50cm High Definition Led Screen Panel P2.97 P3.91 P4.81 Church Event Stage Video Wall With Complete System

Large Image : Factory Wholesale 50x50cm High Definition Led Screen Panel P2.97 P3.91 P4.81 Church Event Stage Video Wall With Complete System

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DDW or OEM
Model Number:	RB Series

Contact Now

Detailed Product Description

Warranty:	5 Years	Type:	LED
Application:	Indoor, Outdoor	Use:	Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment
Media Available:	Photo, EDA/CAD Models, Datasheet	Pixel Density:	65536 Pixels/m2
Pixels:	3.9mm	Pixel Pitch:	3.9mm
Module Size:	250x250 Mm	Module Resolution:	64x64dots
Lamp Type:	SMD1921	Scan Mode:	1/16S
Cabinet Material:	Die-casting Alumimum	Cabinet Weight:	7/13kg

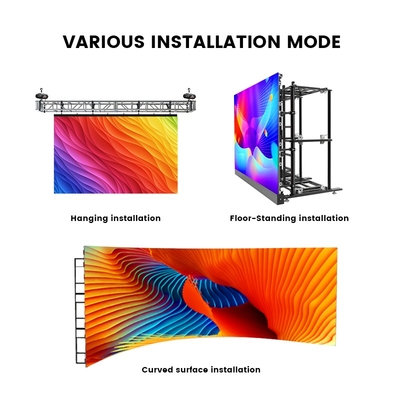

Refresh Rate:	3840Hz	Installation:	Hanging And Standing Support
Control System:	Novastar System	Panel Size:	500x500mm/500x1000mm

Products Description

Specifications

Pixel Pitch

1.56mm

1.95mm

2.604mm

2.976mm

3.91mm

2.604mm

2.976mm

3.91mm

Lamp Types

SMD1212

SMD1515

SMD2020

SMD1415

SMD1921

IC DRIVE

CFD555/ICN3065

1/28S

1/16S

1/12S

1/14S

1/16S

Module size(mm)

250*250

Module Resolution(Pixels/pcs)

160*160

128*128

96*96

84*84

64*64

96*96

84*84

64*64

Module weight(kg)

Module flame retardant rate

Cabinet size(mm)

500*500

Cabinet resolution(Pixels/pcs)

320*320

256*256

192*192

168*168

128*128

192*192

168*168

128*128

Cabinet Weight(kg)

7.5±5%

7.8±5%

Per cabinet Module quanity(pcs)

Pixel density(Pixels/m²)

409600

262144

147456

112896

65536

147456

112896

65536

Material

Die-casting aluminum

Real Brightness(cd/m²)

1000-1200

Grey grade

16bit

Refresh rate

7680Hz

Input Voltage

AC100-240V, 50/60Hz

Power Consumption(Max.W/m²)

around 560

around 650

Power Consumption(Ave.W/m²)

around 280

around 325

IP rating(Front/Rear)

Arc angle

-10°、-7.5°、-5°、-2.5°、0°、2.5°、5°、7.5°、10°

Operating temperature

-20℃ ~ +45℃

Operating humidity

10% ~90%RH

Storage temperature

-10℃ ~ +40℃

Storage humidity

10% ~60%RH

Lifespan (Hrs)

≥50,000

Company Profile

Q:Who Are We?

A: DDW DISPLAY has 12,000sqm high-tech automated workshop, 100 employees,25 research engineers,20 after-sale technicians,4000sqm productivity each month.

Q: How Can We Guarantee Quality?

A: Seven quality control steps ensure your ordered screens good: 1. Suppliers are long-term cooperated large famous company. 2. Material check by professional workers and machines. 3. Debug every modules. 4. 48-hour aging test for all modules before assembling. 5. Test every cabinet's function after assembling by engineers and machines. 6. 72-hour aging test for whole screen before shipment. 7. All details final inspection again before package.

Q: What Can You Buy From Us?

A: indoor outdoor rental LED screen, fixed LED screen, HD LED screen, flexible LED screen, transparency LED display, creative led screens and customization services.

Q: Why Should You Buy From US Not From Other Suppliers?

A: After the 12 years' development, Shenzhen DDW Technology Co.,Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.

Q: What Services Can We Provide?

A: 5-years quality warranty and life-long repairing service. If any components need to repair or replace, you can send it back to Shenzhen.
