Windows Curtain Clear Large Advertising Video Wall P7.8 P10 P15 Transparent Led Screen for Architectural Glass Exterior Walls

Large Image : Windows Curtain Clear Large Advertising Video Wall P7.8 P10 P15 Transparent Led Screen for Architectural Glass Exterior Walls

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DDW
Model Number:	DDW-TI

Contact Now

Detailed Product Description

Application:	Indoor	Color:	16bits Full Color
Supplier Type:	Original Manufacturer, ODM, OEM	Media Available:	Datasheet, Photo, EDA/CAD Models, Other
Use:	Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Exhibition Hall, Airport, Restaurant & Hotel Supplies	Function:	SDK
Pixels:	10mm	Specification:	Video Wall
Brightness:	≥5000nits	Pixel Density:	9216dots/m2
Contrast Ratio:	5000:1	Color Depth:	16bits
Lifespan (hours):	100000hours	Ip Rating:	IP30
Resolution:	100*100dot/cabinet	View Angle（h/v）:	160/160
Pixel Pitch:	P10.4	Permeability:	0.65
Refresh Rate(Hz):	≥3840	LED Light:	1921 RGB
Grey Scale(Bit):	16	Weight PC/KG:	10
Installation Mode:	Fixed Installation	Maintenance Method:	Front And Rear Maintenace
Material:	Aluminum	Control System:	Novastar System

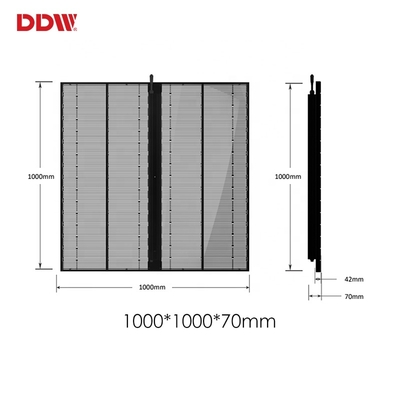

Type:	LED	Panel Size:	1000*1000mm

Discover Your Right Application , Make Your Business Possible !

Common warranty in LED field is 2 years, ours is 3 years Longer warranty periods, better after-sale services, worry-free user experience

Products Description

Specifications

Pixel Pitch	P2.84	P3.91	P7.81	P10.42	P15.625	P20
Pixel Density(m²）	56320	32768	16384	9216	4096	2304
Permeability	0.56	0.7	0.56	0.65	0.75	0.85
Refresh Rate(Hz)	≥3851	≥3840	≥1920	≥1920	≥1920	≥1920
Cabinet Size(mm)	1000*500
Cabinet Refresh Rate	352*80	256*64	128*64	96*48	64*32	48*24
LED Light	1415 RGB	1921 RGB	1921 RGB	1921 RGB	3535 RGB	3535 RGB
Brightness(nits)/㎡	≥2700	≥4500	≥4000	≥4000	≥4000	≥4000
Max Consumption(W/M)	800
Ave Consumption(W/M)	240	240	240	200	180	150
Grey Scale(Bit)	27	16	16	16	16	16
Degree protection	IP41	IP30	IP30	IP30	IP30	IP30
Weight PC/KG	5	5	6	6	6	6
Work Environment	﹣10℃~51℃
Display Interface	DIV/HDMI
Installation Mode	Fixed installation
LED Life(h)	210000	100000	100000	100000	100000	100000

Company Profile

About Us

Shenzhen DDW Technology Co, Ltd is a professional manufacturer and developer of LED display screens in Shenzhen, China since 2012. DDW Display focus on providing indoor outdoor creative LED screen, LED poster, Rental LED screen,Ultra fine HD LED screen,Flexible LED Display,Transparent LED display and various of LED display screens. We are always committed to providing high-quality hardware and software, our excellent pre-sales and after-sales service, and win-win cooperation for all customers.
