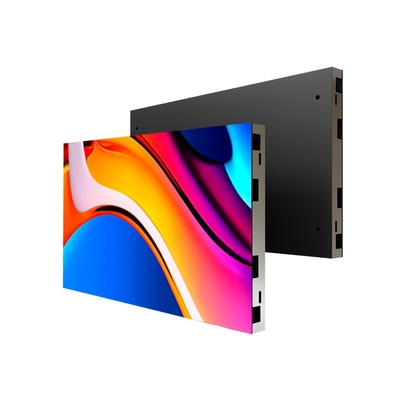

Micro Small Pixel Pitch P0.78 P0.9 P1.25 High Fresh Fixed 7680 Video Wall GOB COB HD Indoor Led Display Advertising Screen Panel

Large Image : Micro Small Pixel Pitch P0.78 P0.9 P1.25 High Fresh Fixed 7680 Video Wall GOB COB HD Indoor Led Display Advertising Screen Panel

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DDW
Model Number:	DCOB series

Contact Now

Detailed Product Description

Warranty:	5 Years	Content Management System:	Cloud-Based CMS, Mobile CMS, Multi-Language Support, Analytics Integration, Content Scheduling, Multi-User Permissions
Remote Device Management:	Firmware Over-The-Air（FOTA）, Remote Content Management, Real-Time Status Monitoring, API Integration	Type:	LED
Application:	Indoor	Use:	Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Exhibition Hall, Airport, Subway, Restaurant & Hotel Supplies, Education
Media Available:	Photo, EDA/CAD Models, Datasheet	Pixel Density:	444,444dots/m2
Pixels:	P1.56, 0.78, 0.9, 1.25, 1.56	Brightness:	1200cd, 1000cd, 600cd, 700cd, 800cd
Pixel Pitch:	1.56 Mm	Module Size:	150*168.75mm
Pixel Configuration:	DCOB	Maintenance Method:	Front Maintenance
Cabinet Size:	600x337.5x28mm	Cabinet Weight:	4.69KG
Cabinet Material:	Die Cast Aluminum	Refresh Frequency:	3840hz~7680hz
Grayscale:	16bit	Brightness (nits)(Colour Temp 6500K):	Factory Delivery Standard: 1000 After Calibration

Products Description

Specifications

Item	Micro Small Pixel Pitch P0.78 P0.9 P1.25 High Fresh Fixed 7680 Video Wall GOB COB HD Indoor Led Display Advertising Screen Panel
Pixel Pitch (mm)	P0.78	P0.9375	P1.25	P1.5625
Module resolution	205x230	160x180	120x135	96x108
Module size (mm)	150x168.75
Cabinet resolution	820x460	640x360	480x270	384x216
Cabinet size (mm)	600x337.5x29
Normal weight (kg/m²)	23
Pixel density (dots/m²)	1508800	1137777	640000	409600
Cabinet flatness (mm)	≤0.15
Single-point brightness correction	yes
Single-point color correction	yes
Brightness (nits)	600-1200
Color temperature (K)	3000-10000 adjustable
Viewing angle	170°/170°
Chroma uniformity	±0.003
Frame rate (Hz)	50&60
Refresh rate (Hz)	3840/7680
Center distance deviation	＜3%
Brightness uniformity	≥97%
40 ° C/RH90% test	Through testing

Company Profile

Q:Who Are We? A: DDW DISPLAY has 12,000sqm high-tech automated workshop, 100 employees,25 research engineers,20 after-sale technicians,4000sqm productivity each month. Q: How Can We Guarantee Quality? A: Seven quality control steps ensure your ordered screens good: 1. Suppliers are long-term cooperated large famous company. 2. Material check by professional workers and machines. 3. Debug every modules. 4. 48-hour aging test for all modules before assembling. 5. Test every cabinet's function after assembling by engineers and machines. 6. 72-hour aging test for whole screen before shipment. 7. All details final inspection again before package.

Q: What Can You Buy From Us? A: indoor outdoor rental LED screen, fixed LED screen, HD LED screen, flexible LED screen, transparency LED display, creative led screens and customization services.

Q: Why Should You Buy From US Not From Other Suppliers? A: After the 12 years development, Shenzhen DDW Technology Co.,Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices. Q: What Services Can We Provide? A: 5-years quality warranty and life-long repairing service. If any components need to repair or replace, you can send it back to Shenzhen.
