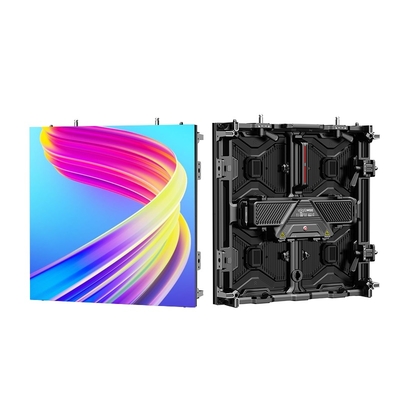

High Performance Full Color Concert Stage Led Screen Wall 7680 hz P1.56 P3.9 Rental Display Panels Outdoor Indoor

Large Image : High Performance Full Color Concert Stage Led Screen Wall 7680 hz P1.56 P3.9 Rental Display Panels Outdoor Indoor

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DDW or OEM
Model Number:	D Series

Contact Now

Detailed Product Description

Warranty:	5 Years	Content Management System:	Cloud-Based CMS, Mobile CMS, Multi-Language Support, Content Scheduling, Analytics Integration, Multi-User Permissions
Remote Device Management:	Firmware Over-The-Air（FOTA）, Remote Content Management, Real-Time Status Monitoring, API Integration	Type:	LED
Application:	Indoor, Outdoor	Use:	Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Exhibition Hall, Airport, Subway, Restaurant & Hotel Supplies
Media Available:	Datasheet, Photo, EDA/CAD Models	Color:	Full Color
Pixel Density:	65536dots/m2	Pixels:	3.9mm
Brightness:	1200cd, 1000cd, 5000cd, 4500cd, 6000cd	Pixel Pitch:	3.9mm
Module Size:	250x250 Mm	Lamp Type:	SMD1921
Real Brightness(cd/m2):	5000	Grey Grade:	14 Or 16bit
Scan Mode:	1/11S	Refresh Rate:	≥7680 Hz
Cabinet Material:	Die-casting Alumimum	Cabinet Weight:	7.5kg ±5%
Installation:	Hanging And Standing Support

Products Description

Specifications

Pixel Pitch

1.56mm

1.95mm

2.604mm

2.976mm

3.91mm

2.604mm

2.976mm

3.91mm

Lamp Types

SMD1212

SMD1515

SMD2020

SMD1415

SMD1921

IC DRIVE

CFD555/ICN3065

1/28S

1/16S

1/12S

1/14S

1/16S

Module size(mm)

250*250

Module Resolution(Pixels/pcs)

160*160

128*128

96*96

84*84

64*64

96*96

84*84

64*64

Module weight(kg)

Module flame retardant rate

Cabinet size(mm)

500*500

Cabinet resolution(Pixels/pcs)

320*320

256*256

192*192

168*168

128*128

192*192

168*168

128*128

Cabinet Weight(kg)

7.5±5%

7.8±5%

Per cabinet Module quanity(pcs)

Pixel density(Pixels/m²)

409600

262144

147456

112896

65536

147456

112896

65536

Material

Die-casting aluminum

Real Brightness(cd/m²)

1000-1200

Grey grade

16bit

Refresh rate

7680Hz

Input Voltage

AC100-240V, 50/60Hz

Power Consumption(Max.W/m²)

around 560

around 650

Power Consumption(Ave.W/m²)

around 280

around 325

IP rating(Front/Rear)

Arc angle

-10°、-7.5°、-5°、-2.5°、0°、2.5°、5°、7.5°、10°

Operating temperature

-20℃ ~ +45℃

Operating humidity

10% ~90%RH

Storage temperature

-10℃ ~ +40℃

Storage humidity

10% ~60%RH

Lifespan (Hrs)

≥50,000
