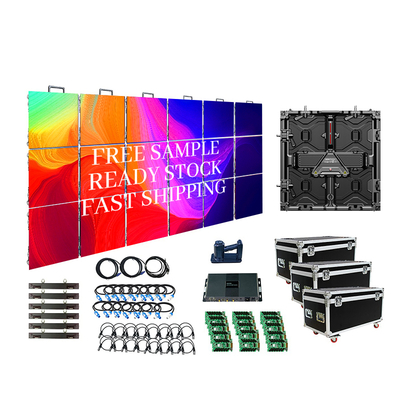

Guangdong Shenzhen Large 500x500mm 7680hz P3.91 Rental Stage Big Stadium Outdoor Building Led Display Screen for Advertising

Large Image : Guangdong Shenzhen Large 500x500mm 7680hz P3.91 Rental Stage Big Stadium Outdoor Building Led Display Screen for Advertising

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DDW/OEM
Model Number:	D series

Contact Now

Detailed Product Description

Warranty:	5 Years	Content Management System:	Cloud-Based CMS, Mobile CMS, Multi-Language Support, Content Scheduling, Analytics Integration, Multi-User Permissions
Remote Device Management:	Remote Content Management, Real-Time Status Monitoring, Firmware Over-The-Air（FOTA）, API Integration	Type:	LED
Application:	Indoor, Outdoor	Use:	Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Self-service Business, Exhibition Hall, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment
Media Available:	EDA/CAD Models, Photo, Datasheet	Pixel Density:	65410
Pixels:	P3.91	Brightness:	1200cd, 1000cd, 5000cd, 4500cd, 6000cd, 1000cd/sqm-6000cd/sqm
Module Size:	250x250 Mm	Cabinet Material:	Die-casting Alumimum
Refresh Rate:	7680HZ	Scan Mode:	1/16scan
Pixel Pitch:	1.56mm,1.95mm,2.604mm,2.976mm,3.91mm	Arc Angle:	-10°,-7.5°,-5°,-2.5°,0°,2.5°,5°,7.5°,10°
Lamp Type:	SMD2020,SMD1921	Usage:	Indoor Outdoor Rental LED Display
Display Function:	Video/Text/Picture/Time/3D Text/Office/SWF

Common warranty in LED field is 2 years, ours is 5 years Longer warranty periods, better after-sale services, worry-free user experience

Products Description

Specifications

Pixel Pitch

1.56mm

1.95mm

2.604mm

2.976mm

3.91mm

2.604mm

2.976mm

3.91mm

Lamp Types

SMD1212

SMD1515

SMD2020

SMD1415

SMD1921

IC DRIVE

CFD555/ICN3065

1/28S

1/16S

1/12S

1/14S

1/16S

Module size(mm)

250*250

Module Resolution(Pixels/pcs)

160*160

128*128

96*96

84*84

64*64

96*96

84*84

64*64

Module weight(kg)

Module flame retardant rate

Cabinet size(mm)

500*500

Cabinet resolution(Pixels/pcs)

320*320

256*256

192*192

168*168

128*128

192*192

168*168

128*128

Cabinet Weight(kg)

7.5±5%

7.8±5%

Per cabinet Module quanity(pcs)

Pixel density(Pixels/m²)

409600

262144

147456

112896

65536

147456

112896

65536

Material

Die-casting aluminum

Real Brightness(cd/m²)

1000-1200

Grey grade

16bit

Refresh rate

7680Hz

Input Voltage

AC100-240V, 50/60Hz

Power Consumption(Max.W/m²)

around 560

around 650

Power Consumption(Ave.W/m²)

around 280

around 325

IP rating(Front/Rear)

Arc angle

-10°、-7.5°、-5°、-2.5°、0°、2.5°、5°、7.5°、10°

Operating temperature

-20℃ ~ +45℃

Operating humidity

10% ~90%RH

Storage temperature

-10℃ ~ +40℃

Storage humidity

10% ~60%RH

Lifespan (Hrs)

≥50,000
