High Performance Super Small Pixel 4K Indoor LED Display P0.7 P0.9 P1.25 P1.5 P1.8 Video Wall for Showroom Advertising

Large Image : High Performance Super Small Pixel 4K Indoor LED Display P0.7 P0.9 P1.25 P1.5 P1.8 Video Wall for Showroom Advertising

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DDW/OEM

Contact Now

Detailed Product Description

Warranty:	5 Years	Type:	LED
Application:	Indoor	Pixel Pitch:	1.56 Mm

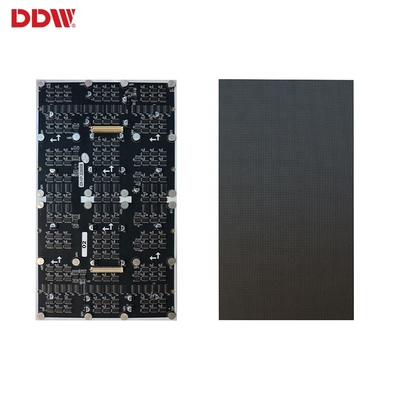

Module Size:	300x168.75mm	Lamp Type:	SMD1010/1212
Usage:	Indoor HD	Cabinet Material:	Alumimum
Cabinet Weight:	4.5kg	Refresh Rate:	3840Hz
Gray Scale:	14/16 Optional	Control System:	Novastar System
Maintenance Mode:	Front Maintenance

Discover Your Right Application , Make Your Business Possible !

Common warranty in LED field is 2 years, ours is 3 years Longer warranty periods, better after-sale services, worry-free user experience

Products Description

Specifications

Pixel Pitch	P0.78125	P0.9375	P1.25	P1.5625	P1.875
LED Type	Mini 4-in-1	Mini 4-in-1	SMD1010	SMD1010/1212	SMD1010/ SMD1515
Physial Density (dots/m²)	1638400	1137778	640000	409600	284444
Module Resolution	192x216	320x180	240x135	192x108	160x90
Module Size (WxH)	150x168.75	300x168.75	300x168.75	300x168.75	300x168.75

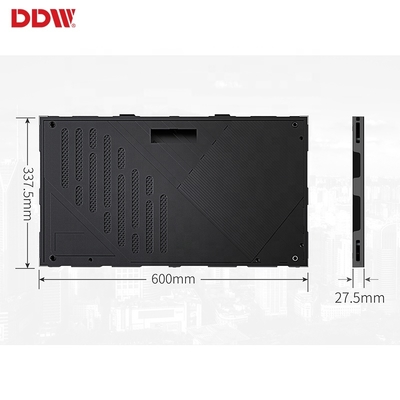

Cabinet Size(mm)	600x337.5x27.5
Cabinet Resolution	768x512	640x360	480x270	384x216	320x180
Module QTY /Cabinet (WxH)	4x2	2x2	2x2	2x2	2x2
Cabinet Weight(kg)	4.5
Maintenance Mode	Front access
Cabinet Material	Die-casting Aluminum
LED brightness correction	Yes
Brightness	≥600
Color Temperature(K)	1000-18500 Adjustable
Grey Level	16 bit
Viewing Angle(H/V)	170*/170
Brightness/Color Uniformity	≥99.8%
Contrast Ratio	10000:01
Frame Frequency	50/60
Drive Mode	Static, 1/48 Scan	Static, 1/46 Scan	Static, 1/45 Scan	Static, 1/48 Scan	Static, 1/45 Scan
Refresh Rate (Hz)	3840
Max Power Consumption（W/m²）	420
Awerage Power Consumption(W/m²）	100
IP Grade	IP31
Input Power	AC90-264V, 47-63 Hz
Working Temperature/Humidity（°C/RH）	-20-60°C / 10%-85%
Storage Temperature/Humidity（°C/RH）	-20-60°C / 10%-85%

Company Profile

About Us

Shenzhen DDW Technology Co, Ltd is a professional manufacturer and developer of LED display screens in Shenzhen, China since 2012. DDW Display focus on providing indoor outdoor creative LED screen, LED poster, Rental LED screen,Ultra fine HD LED screen,Flexible LED Display,Transparent LED display and various of LED display screens. We are always committed to providing high-quality hardware and software, our excellent pre-sales and after-sales service, and win-win cooperation for all customers.
