Application: | Indoor | Color: | 16bits Full Color |
---|---|---|---|
Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Datasheet, Photo, EDA/CAD Models, Other |
Use: | Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Exhibition Hall, Airport, Restaurant & Hotel Supplies | Function: | SDK |
Pixels: | 3.91mm, 3.91mm | Specification: | Video Wall |
Brightness: | ≥4500nits, ≥4500nits | Pixel Density: | 32768dots/m2, 32768dots/m2 |
Contrast Ratio: | 5000:1, 5000:1 | Lifespan (hours): | 100000hours, 100000hours |
Ip Rating: | IP30, IP30 | Resolution: | 256*128dot/cabinet |
View Angle(h/v): | 160/160, 160/160 | Pixel Pitch: | P3.91-7.81 |
Permeability: | 0.7 | Refresh Rate(Hz): | ≥3840 |
LED Light: | 1921 RGB | Grey Scale(Bit): | 16 |
Weight PC/KG: | 10 | Installation Mode: | Fixed Installation |
Maintenance Method: | Front And Rear Maintenace | Material: | Aluminum |
Control System: | Novastar System | Type: | LED |

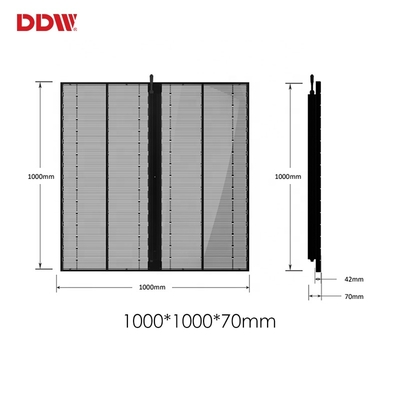

Panel Size: | 1000*1000mm, 1000*1000mm |
Pixel Pitch | P2.84 | P3.91 | P7.81 | P10.42 | P15.625 | P20 | |||||
Pixel Density(m²) | 56320 | 32768 | 16384 | 9216 | 4096 | 2304 | |||||
Permeability | 0.56 | 0.7 | 0.56 | 0.65 | 0.75 | 0.85 | |||||
Refresh Rate(Hz) | ≥3851 | ≥3840 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||

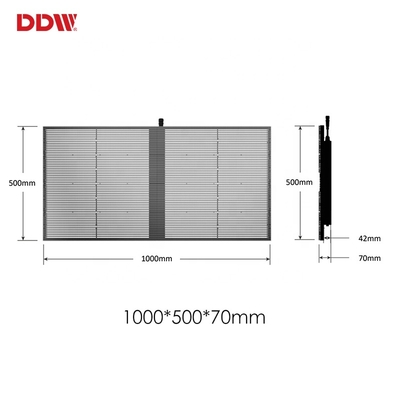

Cabinet Size(mm) | 1000*500 | ||||||||||
Cabinet Refresh Rate | 352*80 | 256*64 | 128*64 | 96*48 | 64*32 | 48*24 | |||||
LED Light | 1415 RGB | 1921 RGB | 1921 RGB | 1921 RGB | 3535 RGB | 3535 RGB | |||||
Brightness(nits)/㎡ | ≥2700 | ≥4500 | ≥4000 | ≥4000 | ≥4000 | ≥4000 | |||||
Max Consumption(W/M) | 800 | ||||||||||
Ave Consumption(W/M) | 240 | 240 | 240 | 200 | 180 | 150 | |||||
Grey Scale(Bit) | 27 | 16 | 16 | 16 | 16 | 16 | |||||
Degree protection | IP41 | IP30 | IP30 | IP30 | IP30 | IP30 | |||||
Weight PC/KG | 5 | 5 | 6 | 6 | 6 | 6 | |||||
Work Environment | ﹣10℃~51℃ | ||||||||||
Display Interface | DIV/HDMI | ||||||||||
Installation Mode | Fixed installation | ||||||||||
LED Life(h) | 210000 | 100000 | 100000 | 100000 | 100000 | 100000 |
